Network Encapsulation Types
WAN Layer 2 Encapsulation
HDLC, PPP and Frame relay are used
for WAN Layer 2

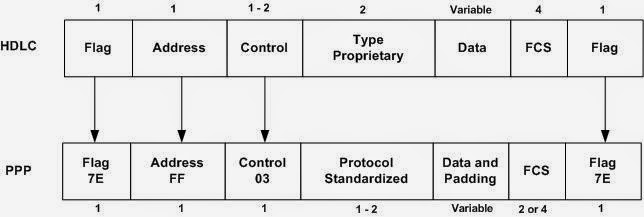

On serial links, Cisco uses
proprietry encapsulation HDLC by default. Use PPP with other non Cisco
routers.
- HDLC is the default serial protocol and is Cisco propriety
- PPP is multivendor and uses the sub protocol LCP (Link Control Protocol)
On frame
relay links - Cisco uses prorpietry encapsulation Cisco
by default. Use IETF with other non Cisco routers.
LAN Layer 2 Encapsulation
Ethernet, Token Ring, FDDI are used
for LAN Layer 2
VLAN Trunking Protocols
802.1q
ISL - (Cisco Inter-Switch Link), an
older VLAN trunking protocol that is proprietary to Cisco
